Diode laser SH13 with LED therapy for reducing hair loss and promoting hair growth

How does the SH13 diode laser with LED light work?

The SH13 system combines multiple advanced technologies to effectively reduce hair loss and stimulate new hair growth through a synergistic approach:

• 650 nm diode laser & 630 nm PDT LED
  Stimulate mitochondrial activity (ATP) in scalp cells, increasing follicle metabolism and accelerating hair growth.
• 808 nm IR laser
  Enhances light penetration and supports even distribution of oxygen and nutrients to hair follicles.
• Microcurrent massage comb
  Gentle electrical currents open blood vessels and improve local circulation, boosting oxygen and nutrient delivery.

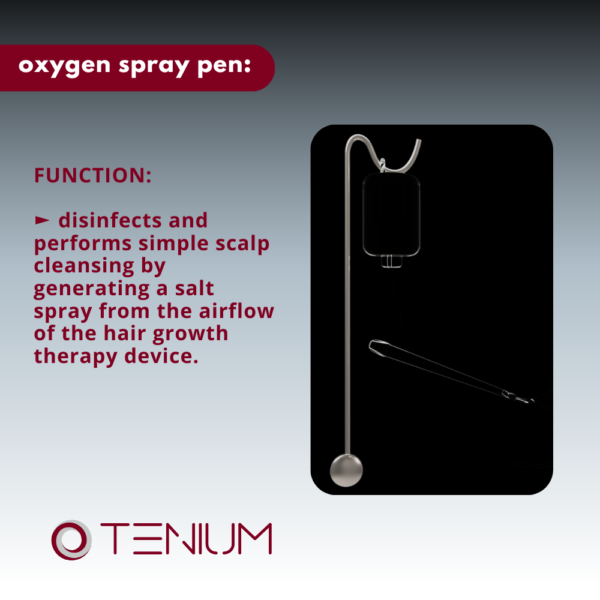

• Oxygen therapy spray
  Disperses a saline solution to disinfect and hydrate the scalp while increasing oxygen supply to tissues.
• Minoxidil applicator
  Applies the active solution directly into hair follicles before laser stimulation, maximizing absorption and effectiveness.
• Patented SH-650 EMS mode
  Electromagnetic stimulation activates up to 80% of dormant follicles, helping stop hair loss and promote regrowth.
• Sebum control
  Cleans and unclogs sebaceous glands, reduces excess oil, and prevents follicle blockage and DHT buildup.

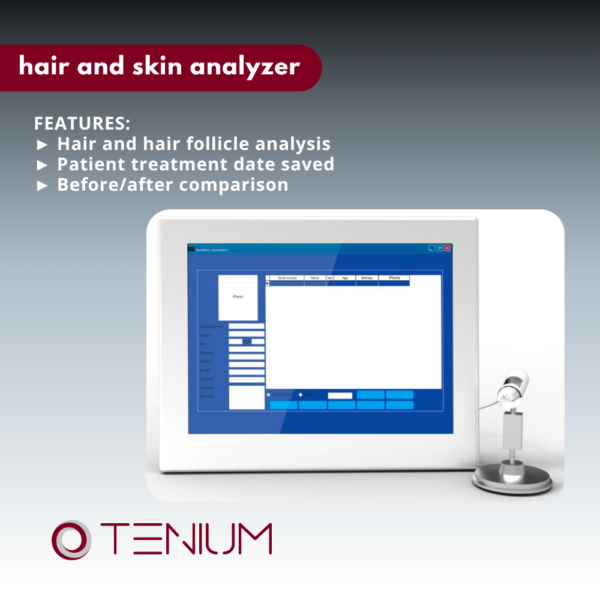

• Integrated hair analyzer
  Accurately evaluates scalp and hair condition, stores data, and enables before/after comparison.

What makes SH13 the best choice?

• Holistic treatment protocol – from analysis and cleansing to Minoxidil application and multi-level stimulation
• Drug-free approach – aside from Minoxidil, relies on light and oxygen therapy
• Comfort & safety – non-invasive, painless, suitable for both men and women and all scalp types
• High ROI for clinics – attractive service with strong client satisfaction and retention

Why choose our SH13 device?

• Proven visible results – up to 85% of clients report reduced hair loss and 40–60% increase in hair density
• Enhances Minoxidil treatment – boosts and accelerates its effects
• User-friendly operation – 8” touchscreen, preset protocols, adjustable pulse time and intensity
• Modular design – helmet, analyzer, and accessories can be easily upgraded and connected

Functions and Benefits

• Laser & LED therapy (650 nm / 630 nm / 580 nm / 460 nm)
• Micro-massage head for improved blood circulation
• Oxygen spray pen for deep cleansing and oxygenation
• Medical sprayer for precise Minoxidil application
• Safe power supply (110V / 220V), low consumption (200 W)
• Data storage and client management system

Recommended Treatment Protocol

• Clinic treatment: 30-minute session once per week for 8–12 weeks
• Home care: Apply 1 ml of Minoxidil every 2 days with light micro-massage
• Maintenance: 4-week break before the next cycle, depending on progress

Technical Specifications

• Laser power:
  • 650 nm diode: 320 mW
  • 808 nm IR: 2200 mW
• LED power:
  • 460 nm (~1000 mW)
  • 580 nm (~2000 mW)
  • 630 nm (~1000 mW)
• Pulse: 1–10 s ON / 0–10 s OFF
• Treatment time: 0–60 minutes
• Display: 8” color touchscreen (custom logo option available)
• Dimensions: 1630 × 550 × 500 mm
• Weight: ~40 kg (device), 60 kg (with packaging)
