Diode laser 980nm SH14 – to remove vascular lesions

How does the SH14 diode laser work?

The 980 nm diode laser is specifically designed for targeted treatment of vascular lesions. This wavelength is optimally absorbed by porphyrin, a component found in blood cells, allowing the laser to coagulate blood vessels without affecting surrounding tissue.

Using a professionally designed treatment applicator with a diameter of just 0.2–0.5 mm, the energy is focused exclusively on the target area—such as visible capillaries, hemangiomas, or spider veins—while avoiding damage to healthy skin.

At the same time, the laser stimulates collagen production, strengthening the epidermis and reducing the likelihood of new vascular visibility. The result is firmer, healthier, and more elastic skin.

What makes the SH14 diode laser the best choice?

• Precision 980 nm technology – targets only vascular structures, not surrounding tissue
• Power up to 100 W – for fast, effective, and long-lasting vessel removal
• Minimal downtime – no scarring, bleeding, or swelling
• Professional applicator – ergonomic design for treating even the smallest facial vessels
• Pain-free procedure – no anesthesia required
• Visible results after just 1–2 sessions

Indications – What is SH14 suitable for?

• Spider veins (telangiectasia) on the face, legs, and nose
• Red veins and vascular issues caused by pregnancy or hormonal imbalance
• Cherry hemangiomas and other benign vascular lesions
• Vascular lesions caused by sun damage
• Endovenous laser treatment (EVLT) – under medical supervision

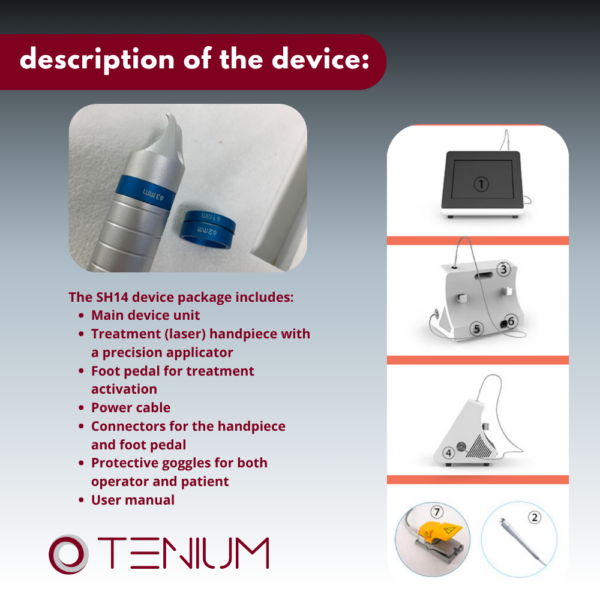

Device Functions

• Intuitive touchscreen display – easy parameter adjustment
• Foot pedal control – safe hands-free operation
• High-power mode – faster treatment of larger areas
• Micro-precision applicator – ideal for delicate areas around the nose and eyes
• Maintenance-free cooling system – quiet, efficient, and reliable

Benefits for clinics and salons

• Increased client satisfaction with visible results after the first treatment
• Fast return on investment – procedures take only 15–30 minutes and are in high demand
• Multi-purpose use – suitable for aesthetic and minor medical procedures (under supervision)
• No consumables required – low operating costs

Technical Specifications

• Light source: 980 nm diode laser
• Laser power: up to 100 W
• Pulse width: 20–100 ms (adjustable)
• Repetition rate: 1–5 Hz (adjustable)
• Cooling: air cooling
• Display: 17-inch color touchscreen LCD (custom logo option available)
• Device dimensions: 400 × 320 × 350 mm
• Package dimensions: 525 × 445 × 465 mm
• Power supply: AC 220V ±10% 50Hz / AC 110V ±10% 50Hz
• Control: foot pedal + touchscreen
• Applicator: precision-designed, beam diameter 0.2–0.5 mm
• Operation mode: continuous or pulsed
• Weight: 8–12 kg (depending on version)
