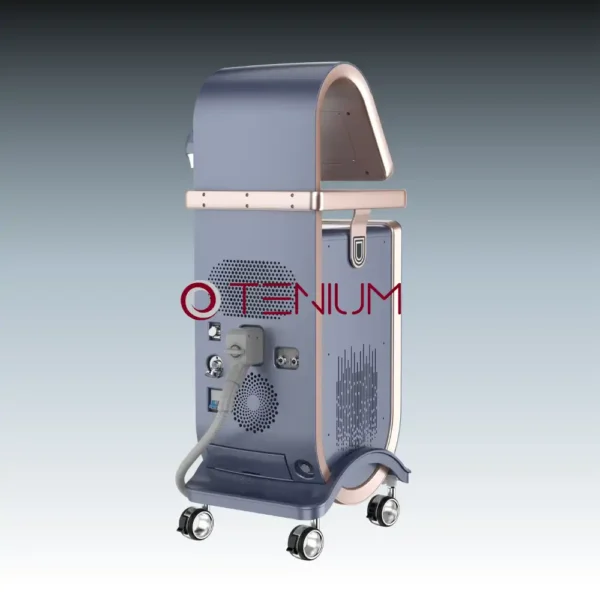

Diode laser 1800W SH16 – for hair removal

🎥Product video:

How does the 1800W SH16 diode laser work?

The SH16 diode laser operates using an 808 nm wavelength, which precisely penetrates the hair follicle and selectively destroys it while protecting the surrounding skin. Thanks to FAC (Fast Axis Collimator) technology, the laser beam is collimated into a parallel, focused beam, ensuring even energy distribution, higher precision, and greater efficiency.

The device enables treatment using multiple magnetic applicators of different sizes, tailored for every area—from large zones (legs, back) to small and sensitive areas (face, nose, bikini).

The unique combination of high energy, short pulses, and intensive cooling ensures fast, effective, and completely painless treatments.

What makes the SH16 diode laser the best choice?

• Top-level power – 1800W for extremely fast and effective hair removal

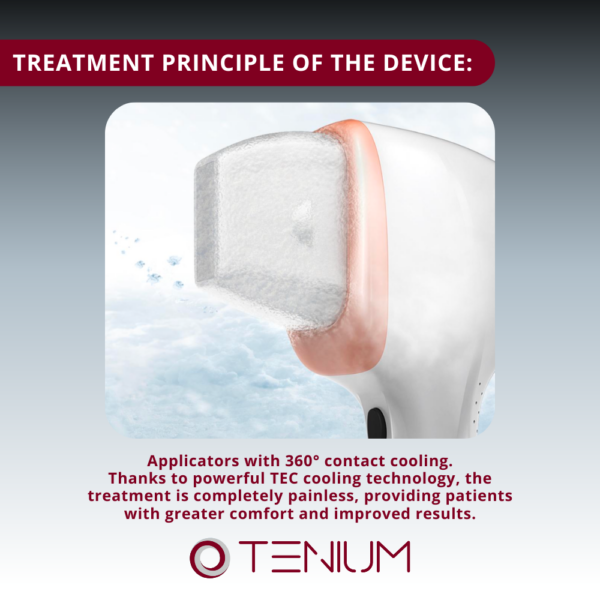

• 360° contact cooling down to -20°C – prevents pain and skin overheating
• FAC technology with US Coherent bar modules – maximum precision, long lifespan, and safe performance
• Magnetic interchangeable applicators – quick and effortless replacement
• Touchscreen on both the handpiece and main panel (12″) – intuitive for beginners and professionals

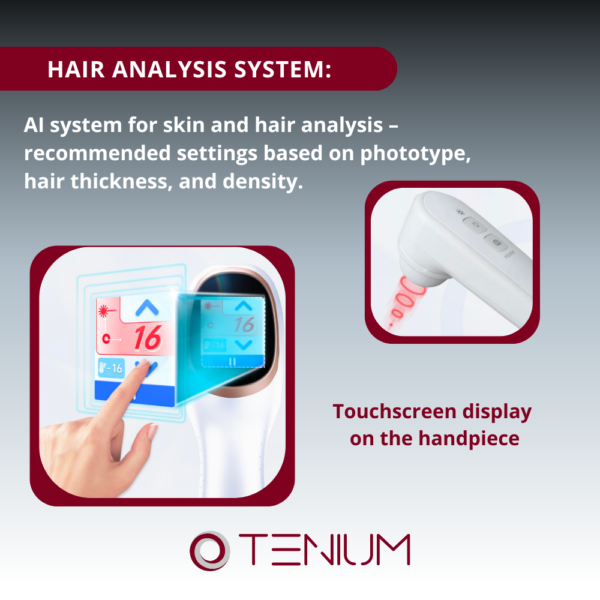

• AI skin and hair analysis system – recommended settings based on phototype, hair thickness, and density
• CRM system – client data storage and treatment history

Device functions

• 808 nm wavelength – gold standard for laser hair removal

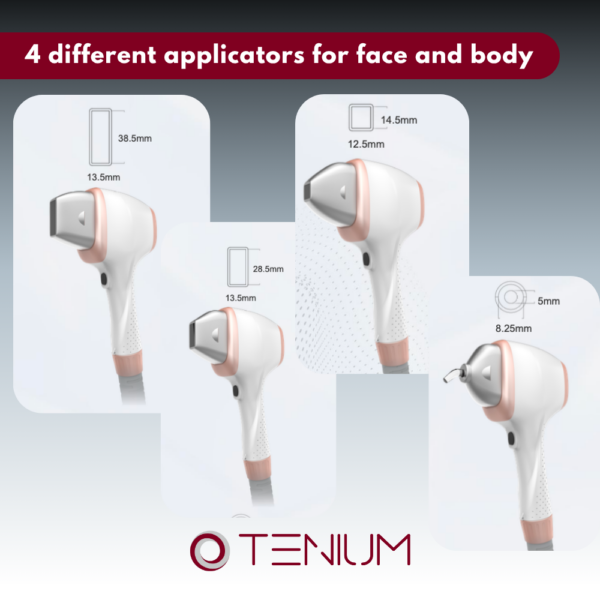

• 4 applicator sizes in one system:
  • 38.5 × 13.5 mm – ideal for legs and back
  • 28.5 × 13.5 mm – ideal for arms and chest
  • 14.5 × 12.5 mm – universal use (face, bikini, underarms)
  • 8.25 mm – precision areas (nose, upper lip)
• High frequency up to 10 Hz for ultra-fast treatments
• Adjustable pulse width: 5–100 ms
• Cooling system: TEC + water + air (optional compressor cooling)
• Intelligent operating modes: Normal / Professional / Fast
• Real-time monitoring of temperature and pulse width
• Ultra-quiet wheels – ideal for premium clinics

Advantages of the SH16 diode laser

• Fast and efficient treatments, even on large areas
• Completely painless thanks to powerful cooling
• Safe for all skin types, including darker tones
• Stable performance with US laser bars
• Easy applicator replacement via magnetic system
• User-friendly operation, even for less experienced operators
• Energy-efficient with long device lifespan
• CRM system for client management and personalized treatments

Product specifications

• Wavelength: 808 nm
• Pulse width: 5–100 ms
• Frequency: 1–10 Hz
• Main device power: 4500 W
• Handpiece power: up to 1800 W
• Fluence: 5–28 J/cm²
• Spot size: max. 13.5 × 38.5 mm
• Display: 12″ color touchscreen LCD + handpiece display
• Handpiece cooling: up to -20°C
• Cooling system: TEC, air, water (+ optional compressor)
• Technology: FAC – collimated beam
• Applicator connection: magnetic
• CRM system: yes
• AI skin & hair analysis: optional
