Q switch Nd:Yag laser JL6 – for tattoo removal, pigmentation and skin rejuvenation

🎥Product video:

How does the Q-switched Nd:YAG laser JL6 work?

The laser operates on the principle of selective photothermolysis, delivering ultra-short nanosecond pulses with high energy that precisely break down pigment particles without damaging surrounding tissue.

• Tattoo removal – pigment is shattered into microscopic particles and naturally eliminated by the lymphatic system
• Pigmentation removal – effectively targets deeper layers of the skin, disrupting melanin clusters
• Skin rejuvenation – stimulates collagen production, reduces fine wrinkles, and evens out skin tone
• Capillaries and redness – thermal effect targets hemoglobin, helping to close dilated vessels

What makes the JL6 the best choice?

• Maximum pulse energy up to 2400 mJ (1064 nm) – highly effective treatments

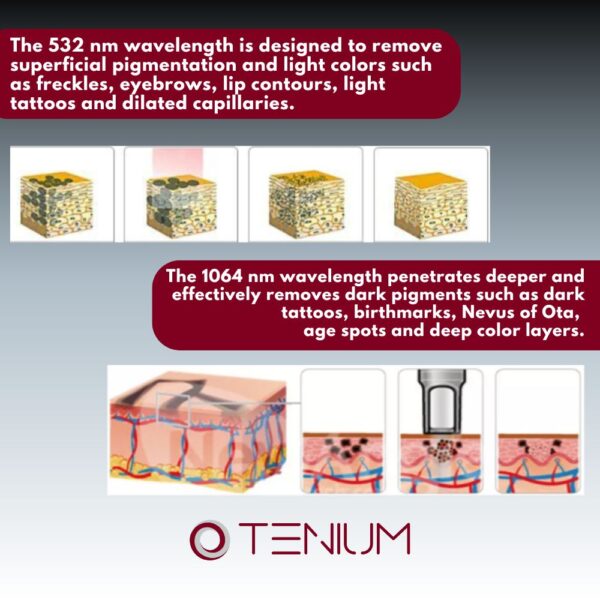

• Dual-wavelength technology (1064 nm / 532 nm) – suitable for almost all tattoo colors and pigmentation types
• Uniform energy distribution (honeycomb technology) – ensures precision, safety, and minimal side effects
• 7-joint articulated arm (360° movement) – comfortable handling and consistent energy delivery
• 15.6-inch color touchscreen – intuitive and easy operation
• High stability with low energy loss (less than 13%) – reliable performance throughout the day

Why choose the Q-switched Nd:YAG JL6?

• Suitable for all skin types and tones
• High effectiveness even after the first session
• Minimal downtime
• Safe, certified, and technologically advanced device
• Ideal for professional salons, aesthetic clinics, and dermatologists

Device functions:

The JL6 is a versatile system designed to address a wide range of aesthetic concerns. With two wavelengths (1064 nm and 532 nm), it targets both deep and superficial skin layers, effectively treating various types of pigmentation and tattoos while also providing rejuvenation and brightening treatments.

Applications:

• Tattoo removal (black, blue, green, red, purple)
• Permanent makeup removal (eyebrows, eyeliner, lip contour)
• Pigmentation treatment (freckles, melasma, age spots, sun spots, café-au-lait spots, nevus of Ota, blue/black nevus)
• Skin tone evening and whitening
• Skin rejuvenation (White/Black Doll treatments – pore cleansing, oil control, improved skin texture)
• Wrinkle reduction and improved skin elasticity
• Treatment of visible capillaries and vascular lesions (telangiectasia)

How many sessions are needed?

The recommended number of treatments depends on the indication and skin condition:

• Tattoos (blue/black): 4–5 sessions, every 5–6 weeks
• Eyebrows and eyeliner: 3–4 sessions, every 5–6 weeks
• Nevus of Ota: 2–8 sessions, every 2 months
• Pigmentation (melasma, freckles, age spots): 4–10 sessions, every 1–2 months
• Skin rejuvenation (White/Black Doll): every 2–4 weeks

Results may vary depending on age, skin type, and individual response.

Advantages of the JL6:

• Advanced technology with high efficiency
• Uniform and precise performance without overheating or energy loss
• Long lifespan with low maintenance costs
• Suitable for intensive daily use
• Excellent balance of power, comfort, and design

Product specifications:

• Laser wavelengths: 1064 nm / 532 nm
• Pulse modes: Single, double, and triple pulse
• Output energy:
  • 1064 nm: up to 2400 mJ (triple pulse)
  • 532 nm: up to 450 mJ
• Pulse frequency: 1–10 Hz
• Pulse width: ≤ 6 ns (1064 nm), ≤ 5 ns (532 nm)
• Spot size: 2–10 mm (adjustable)
• Cooling: Water cooling system (7 L tank)
• Weight:
  • Arm: 10 kg
  • Full device: 70 kg
• Power supply: 3000 W
• Display: 15.6” color LCD touchscreen – option to add your logo
• Custom color option available (additional cost)
