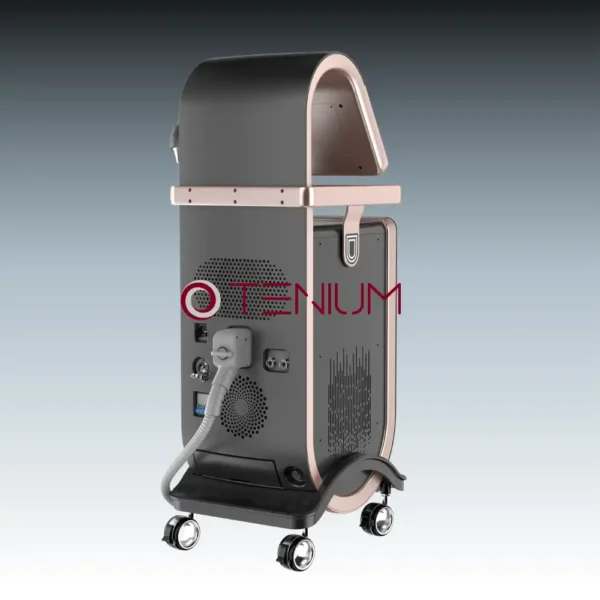

Diode laser 3000W with 3 wavelengths SH17 – for hair removal

How does the SH17 diode laser with 3 wavelengths work?

The SH17 laser technology uses three different wavelengths in a single handpiece, allowing it to target hair at different depths of the skin:

755 nm (Alexandrite wavelength) – ideal for fine, light hair and lighter skin tones
808 nm (standard diode wavelength) – the most versatile option for all skin types and hair thicknesses
1064 nm (Nd:YAG) – penetrates deeper layers of the skin, ideal for darker skin types and thick, coarse hair

Thanks to FAC (Fast Axis Collimator) technology, the laser beam remains stable, focused, and evenly distributed, reducing the risk of irritation while increasing treatment efficiency. The laser precisely targets the hair follicle with minimal impact on surrounding tissue.

What makes the SH17 diode laser the best choice?

3000W handpiece power – extremely fast and efficient results, even on large treatment areas
Three wavelengths in one device – high effectiveness for all skin phototypes

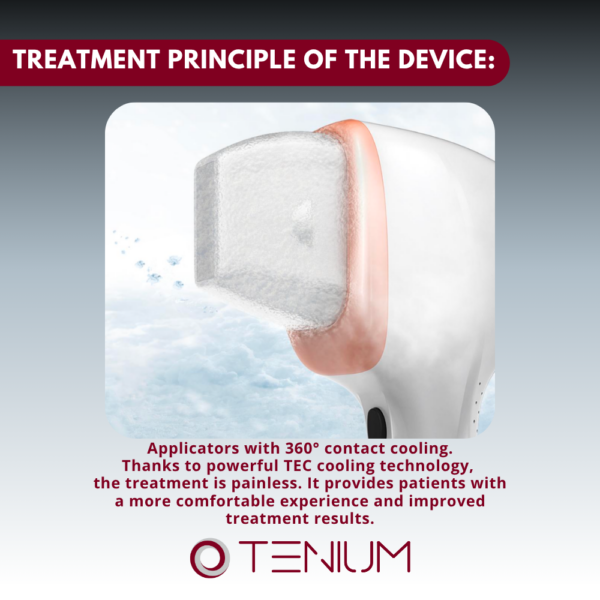

360° contact cooling up to -20°C – painless treatment even for sensitive areas
Touchscreen on the handpiece – convenient control without returning to the main panel
Magnetic interchangeable applicators of different sizes – quick and safe switching for various body areas

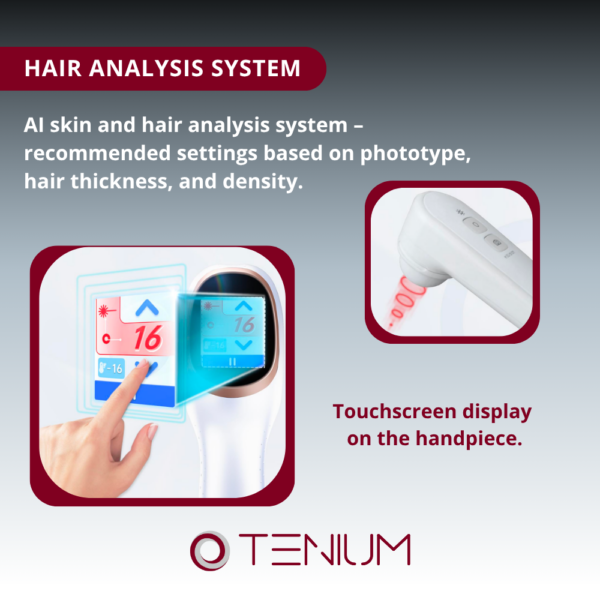

Optional AI skin & hair analysis – automatic adjustment of parameters based on individual client needs

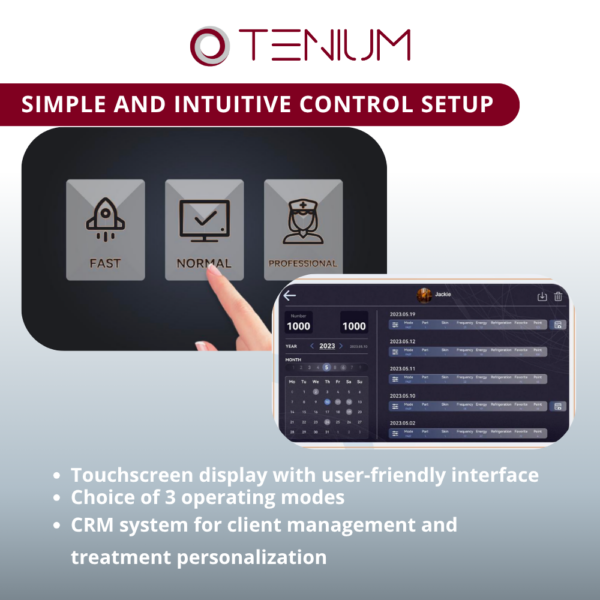

User modes for beginners and professionals – Normal, Fast, and Professional modes
CRM system – storage of client data and treatment history

Device functions

The SH17 diode laser is designed for professionals seeking maximum performance, reliability, and versatile use in aesthetic practice. With advanced technology, premium components, and intuitive operation, it delivers outstanding results and comfort for both clients and operators.

• Three wavelengths: 755 nm, 808 nm, 1064 nm
• FAC technology for a stable and precise laser beam
• Spot size up to 38.5 × 13.5 mm for fast treatments
• Adjustable pulse width: 5–100 ms
• Frequency: up to 10 Hz
• Fluence: 5–28 J/cm²
• Display: 12″ color touchscreen + touchscreen on the handpiece
• Cooling: TEC, water, air (optional compressor cooling)
• Handpiece temperature: down to -20°C for maximum comfort
• Magnetic handpieces for easy handling and replacement
• CRM system: parameter and client data storage
• Optional AI skin analysis

Advantages of the SH17 system

• High power ensures faster treatments and higher efficiency
• Safe treatment for darker skin phototypes thanks to the 1064 nm wavelength
• Year-round use, including tanned skin
• Long lifespan with original US Coherent laser bars
• Easy to use for both beginners and experienced professionals
• High client comfort thanks to an advanced cooling system

Product parameters

• Wavelengths: 755 nm, 808 nm, 1064 nm
• Handpiece power: 3000 W
• Total device power: 6400 W
• Pulse width: 5–100 ms
• Frequency: 1–10 Hz
• Fluence: 5–28 J/cm²
• Spot size: 13.5 × 38.5 mm
• Cooling: TEC, water, air
• Handpiece temperature: up to -20°C
• Display: 12″ color touchscreen + handpiece touchscreen
• Magnetic handpieces: yes
• CRM system & memory settings: yes
• Optional AI skin and hair analysis
